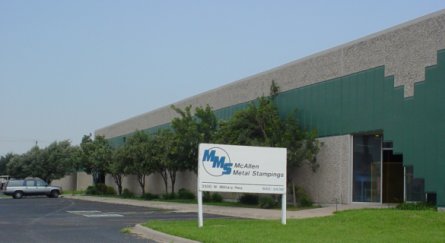

BUILDING
|
|
|
20,000
Square Feet
Security system Entry & Fire
Full Sprinkler System
Loading Docks (2)
|
|
|
EQUIPMENT LIST
|
|
|
PRODUCTION PRESS AREA
FEED EQUIPMENT
PRESS STRAIGHTNER
PRESS COILERS
TOOL ROOM EQUIPMENT
INSPECTION EQUIPMENT
|
|
|
|

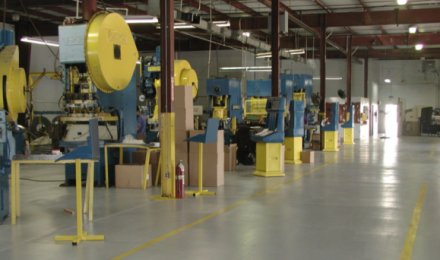

PRODUCTION PRESS
AREA
|
|
P001
|
220 TON. Sutherland
Mark2 -220, Bolster area 96 x 32 . Shut height
20". Stroke 9". 25-45 S.P.M.
|
|
P002
|
125 Ton Aida Gap Frame,
equipped with hydraulic overloads and die protection, Bed 72" x
26", 15 3/4" Shut Height, 7" Stroke, (1988).
|
|
P003
|
88 Ton Aide Gap Frame,
Bed 39" x 24", 15.6" Shut Height, 3.9" Stroke,
variable speed 55-105 SPM (1988)
|
|
P004
|
175 Ton Aida Gap Frame,
equipped with hydraulic overloads and die protection,
|
|
P005
|
110 Ton AIDA, Bed
42" x 28", 14" Shut Height, 7" Stroke .
|
|
P006
|
80 Ton FEDERAL OBI, Bed
48" x 24", 20" Shut Height, 6" Stroke (1980).
|
|
P007
|
100 Ton , CMC, Bed
18" x 24", 18" Shut Height, 6" Stroke.
|
|
P008
|
56 Ton MINSTER, Bed 17
1/2" x 27", 8" Shut Height, 2" Stroke.
|
|
P009
|
105 Ton VERSON, Bed 17
1/2" x 27", 8" Shut Height, 2" Stroke.
|
|
P010
|
80 Ton VERSON, Bed 28 x
36", 13.5" Shut Height, 4" Stroke.
|
|
P011
|
80 TON FEDERAL, Bed
28" x 36". 4"Stroke, Shut height 13.5
|
|
P012
|
175 TON SUTHERLAND ,
equipped with hydraulic overloads and die protection, (1998) (To be in
service May 2006)
|
|
|
|
FEED EQUIPMENT
|
|
PF001
|
P.A.
Electronic Servo Roll Feed .125" Thick x 16" Wide capacity (New
2005).
|
|
PF002
|
P.A.
Electronic Servo Roll Feed .125" Thick x 12" Wide capacity (
1992).
|
|
PF003
|
P.A.
Electronic Servo Roll Feed .125" Thick x 12" Wide capacity (New
1992).
|
|
PF004
|
Vamco Servo Feed .125 Thick x 6" Wide capacity ( Aug.
1996).
|
|
PF005
|
Cooper-Weymouth
Servo Roll Feed .156" Thick x 12" Wide capacity (New 1996)
|
|
PF006
|
P.A.
Electronic Servo Roll Feed .125" Thick x 12" Wide capacity (
1992).
|
|
PF007
|
CW
Servo Feed .125P. Electronic Servo Roll Feed .125" Thick x 14"
Wide capacity (199).
|
|
|
(2)
Air Feeds 12" x 18" capacity.
|
|
|
PRESS STRAIGHTNER
|
|
PS001
|
Egan
7 Roll Stock Power Straightener, 15" Wide capacity. ( Rebuilt 2003)
|
|
PS002
|
Littell 17 Roll Stock Power Straightener, 12" Wide
capacity.
|
|
PS003
|
Littell 7 Roll Stock Power Straightener, 10" Wide
capacity, (Rebuilt 1996).
|
|
PS004
|
Littell 7 Roll Stock Power Straightener, 12" Wide capacity.
(Rebuilt 1995).
|
|
PS005
|
Littell 11 Roll Stock Straightener, 12" Wide capacity.
|
|
PS006
|
Rowe
S1 Roll Stock Straightner, 11" Wide capacity
|
|
PS007
|
Coe
7 Roll Straightener 12" Wide capacity
|
|
|
PRESS COILERS
|
|
PC001
|
Sesco 55-517. 10,000 lb.pay off
reel, 24" Wide capacity.
|
|
PC002
|
American
6,000 lb. pay off reel, 24" Wide capacity.
|
|
PC003
|
Cooper
Weymouth 1,200 lb. double ended Coil reel, 18" Wide capacity.
|
|
PC004
|
Littell 4,000 lb. pay off reel, 24" Wide capacity.
|
|
PC005
|
Littell 2,000 lb. pay off reel, 18" Wide capacity.
|
|
PC006
|
CW
6,500# 18" Wide capacity
|
|
PC007
|
Cooper
Weymouth 16,000# 12" Wide capacity
|
|
|
TOOL ROOM EQUIPMENT
|
|
TR001
|
Bridgeport
Series 1 Mill
|
|
TR002
|
Bridgeport
Series 1 mill with digital Readouts.
|
|
TR003
|
Chevalier
surface Grinder, 6" x 18" (New 1992).
|
|
TR004
|
Parker
Majestic Surface Grinder, 6" x 18".
|
|
TR005
|
Brown
& Sharp Hydraulic - Wet Surface Grinder 8" x 24".
|
|
TR006
|
Enco Lathe.
|
|
TR007
|
King
Drill Press.
|
|
TR008
|
Rockwell
Drill Press.
|
|
TR009
|
(1)
Brand Saws.
|
|
TR010
|
Victory
Horizontal cut Off Saw.
|
|
TR011
|
Paragon
Heat Treat Oven 2,000 deg.
|
|
|
INSPECTION EQUIPMENT
|
|
|
Total
Quality Assurance System. ISO 9001 CERTIFIED
|
|
|
14"
Comparator with Readout.
|
|
|
36"
x 24" Granite surface Plate.
|
|
|
48"
x 24" Granite surface Plate (Grade AA).
|
|
|
Height
Gages.
|
|
|
Gage
Blocks
|
|
|
Micrometers
|
|
|
Digital
calipers
|
|
|
Pin
Gages
|
|
|
Rockwell
Hardness Tester - Clark Model C-12
|
|
|
(3)
1.7 DELL
|
|
|
(2)
DELL Computers with Assorted Q.A. Software.
|
|
|
MISCELLANEOUS
EQUIPMENT
|
|
|
Alamco Vibratory Finisher - 5 cubic ft.
|
|
|
(2) 12
cubic Foot Barrel Type Tumblers.
|
|
|
PALATEK 40
H.P. Air Compressor (New 1992).
|
|
|
Hankinson
400 SCFM Refrigerated Air Dryer (New 1992).
|
|
|
Clark 4,000
lb. Lift Truck.
|
|
|
Toyota
10,000 lb. Lift Truck with side shifter (New 1992).
|
|
|
Big Joe
1,500 lb. Lift.
|
|
|
Miller Synco-wave Arc Welder.
|
|
|
Plasma
cutter
|
|
|
1/16"
capacity Nibbler
|
|
|
|
|
